1. Home
  2. ARTICULATED CRANES 30TON

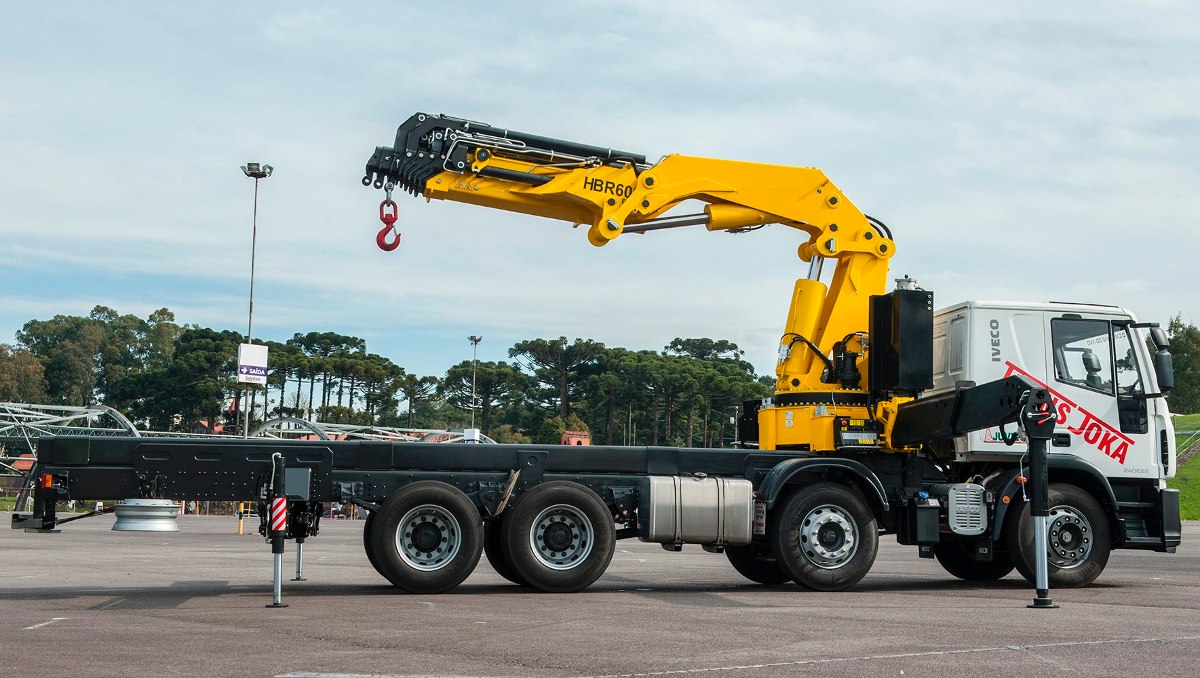

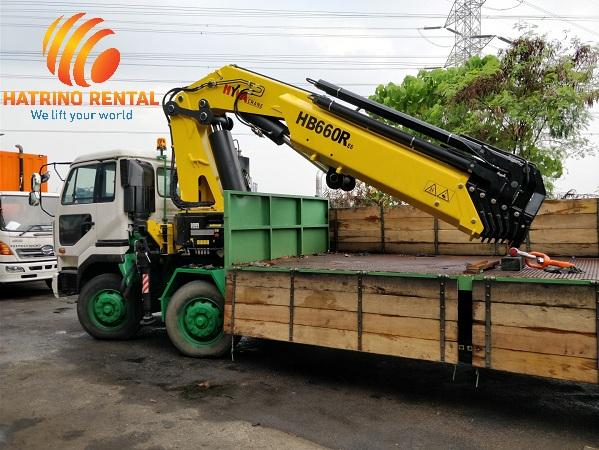

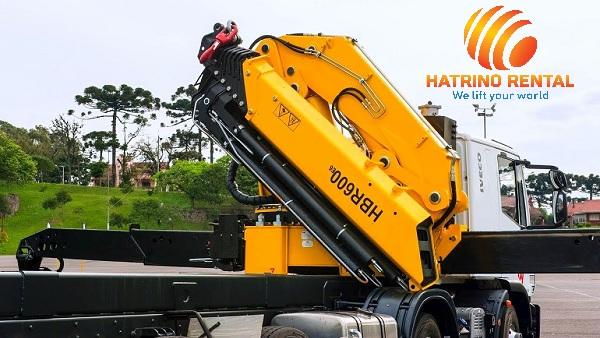

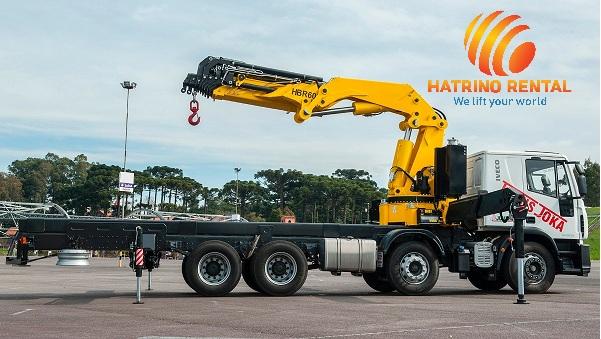

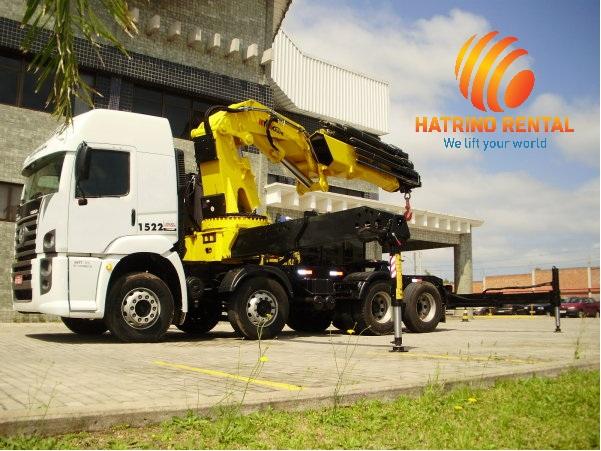

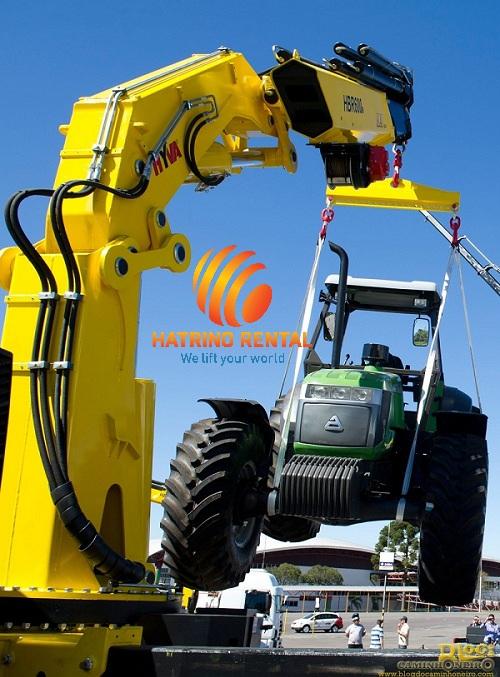

ARTICULATED CRANES 30TON

ARTICULATED CRANES 30TON
ARTICULATED CRANES 30TON
ARTICULATED CRANES 30TON
ARTICULATED CRANES 30TON
ARTICULATED CRANES 30TON

ARTICULATED CRANES 30TON

  • NH00399
  • Lifting moment: 54,4 tm
  • Max. vert. reach : 16,3 m
  • Slewing angle : 420º
  • Slewing time: 18 s/180º
  • Working pressure: 290 bar
  • Crane w/o stab: 5100 kg
  • Weight stab: 900 kg
  • Oil tank capacity : 250 l
  • Dim : 2550 x2420x1456 mm
  • Truck min GVW: 24 ton
Add product to cart
Order
Rent

MAIN SPECIFICATION

  • Lifting moment: 54,4 tm
  • Max. vert. reach : 16,3 m
  • Slewing angle : 420º
  • Slewing time: 18 s/180º
  • Working pressure: 290 bar
  • Crane w/o stab: 5100 kg
  • Weight stab: 900 kg
  • Oil tank capacity : 250 l
  • Dim : 2550 x2420x1456 mm
  • Truck min GVW: 24 ton



APPICATION



Constant in all boom positions, these larger-sized articulated cranes are designed to offer robustness and high capacity for tough applications from 33 to 66 tm.
