1. Home
  2. ARTICULATED CRANES 10 TON

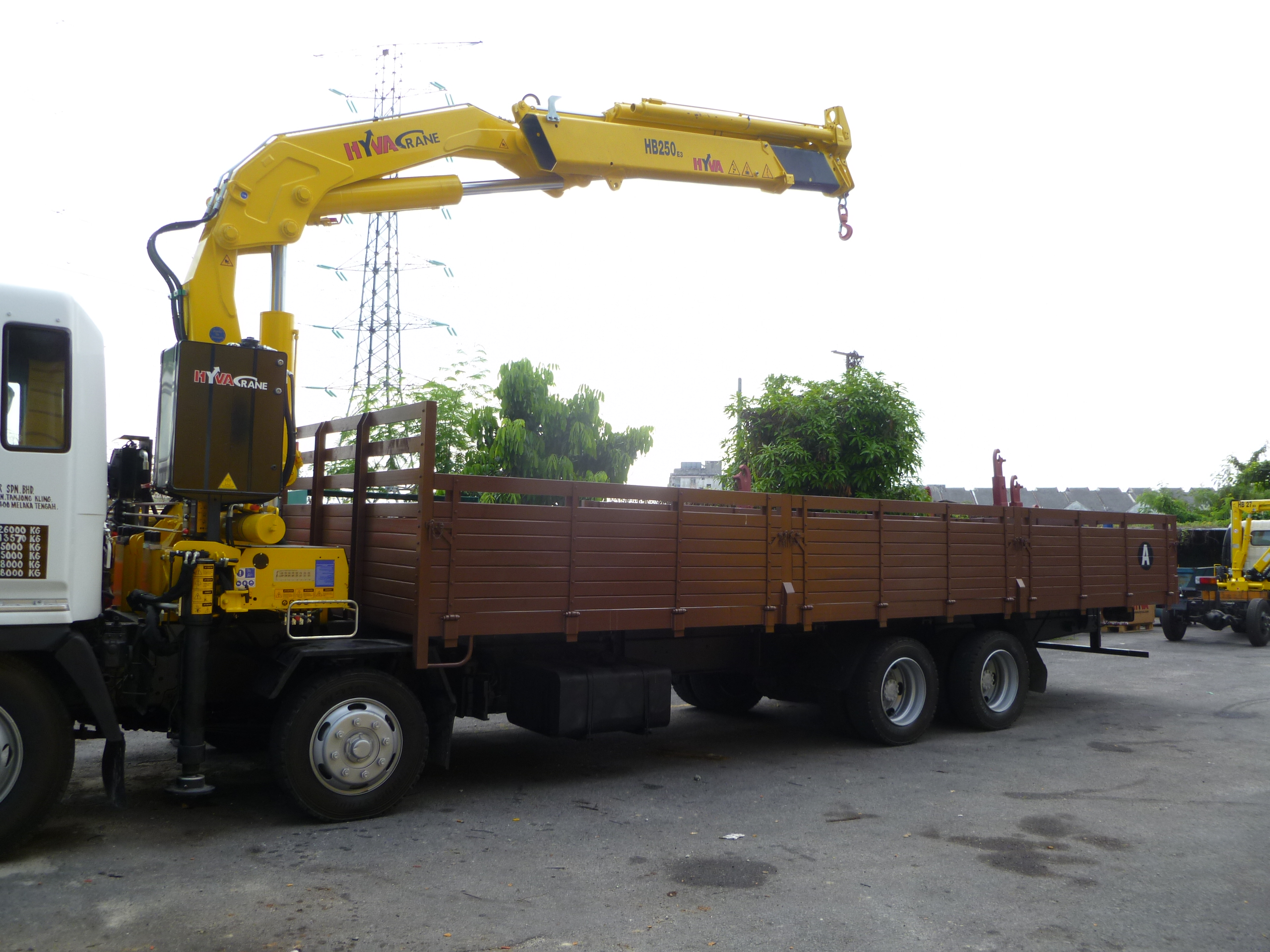

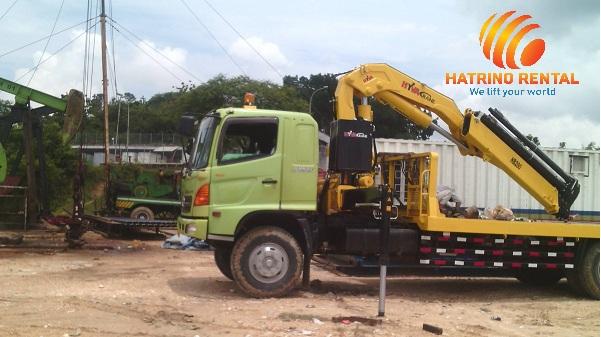

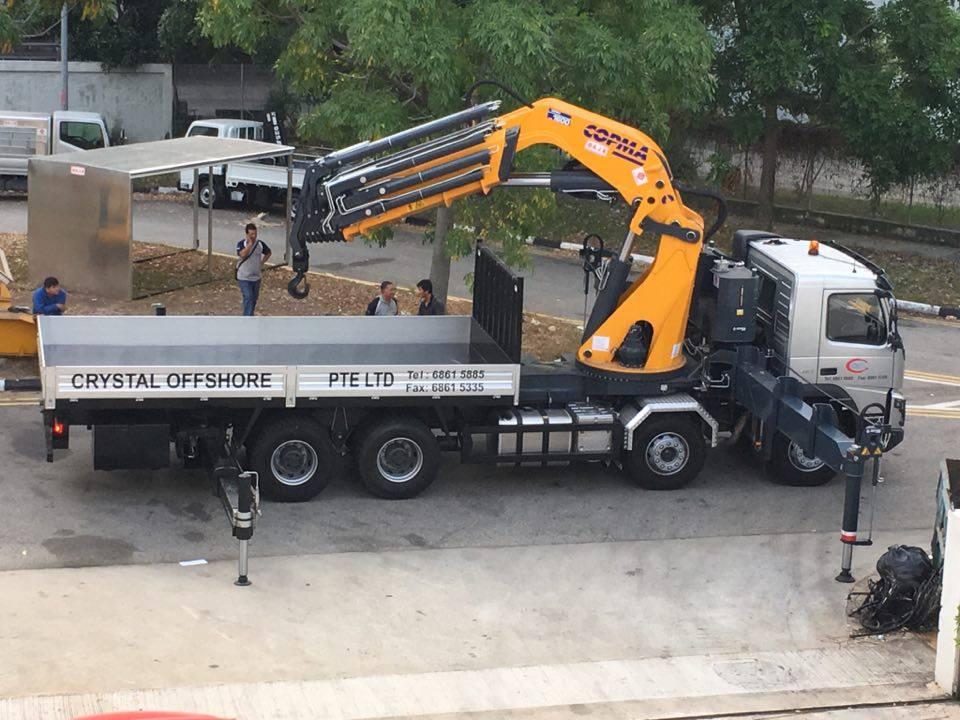

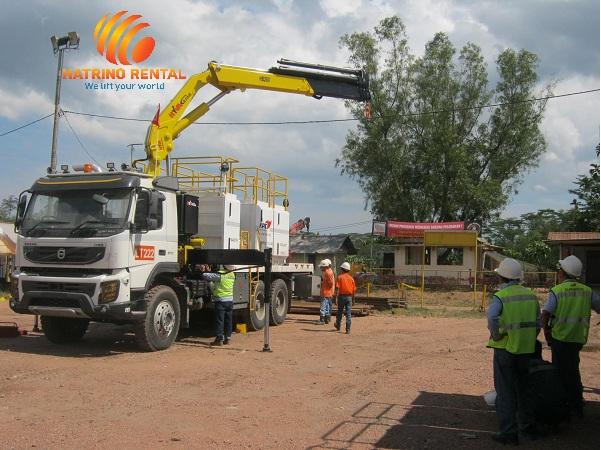

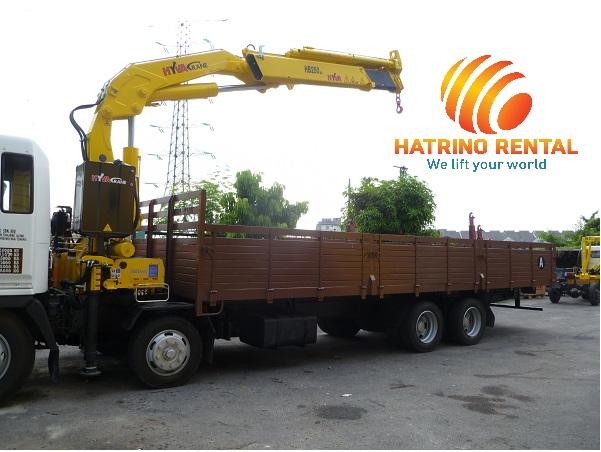

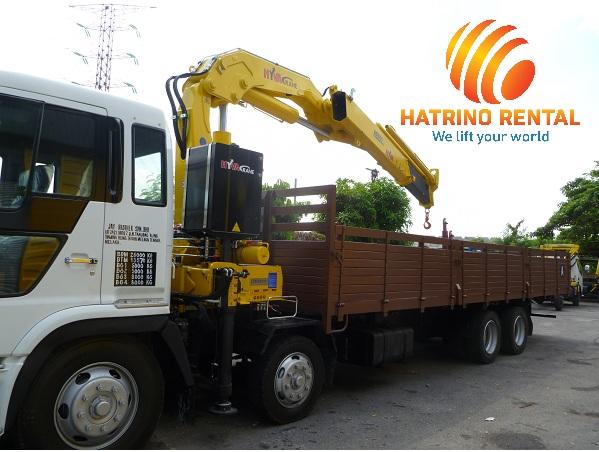

ARTICULATED CRANES 10 TON

ARTICULATED CRANES 10 TON
ARTICULATED CRANES 10 TON
ARTICULATED CRANES 10 TON
ARTICULATED CRANES 10 TON
ARTICULATED CRANES 10 TON

ARTICULATED CRANES 10 TON

  • NH00396
  • Lifting moment: 25,1 tm
  • Max. vert. reacht : 19,3 m
  • Slewing angle : 400º
  • Slewing time: 20 s/180º
  • Rotating hook, capacity: 11,5 ton
  • Crane w/o stab: 3735 kg
  • Standard colour/: Vàng RAL 1023
  • Oil tank capacity : 160 l
  • Working pressure: 290 bar
  • Dim: (2540x2320x1200) mm
Add product to cart
Order
Rent

MAIN SPECIFICATION

  • Lifting moment: 25,1 tm
  • Max. vert. reacht : 19,3 m
  • Slewing angle : 400º
  • Slewing time: 20 s/180º
  • Rotating hook, capacity: 11,5 ton
  • Crane w/o stab: 3735 kg
  • Standard colour/: Vàng RAL 1023
  • Oil tank capacity : 160 l
  • Working pressure: 290 bar
  • Dim: (2540x2320x1200) mm

APPLICATION

Constant in all boom positions, these larger-sized articulated cranes are designed to offer robustness and high capacity for tough applications from 33 to 66 tm.

Contact information

HATRINO CO.,LTD

Adress: No 01, Alley 17/199, Ho Tung Mau  Rd, Nam Tu Liem  Dist., Ha Noi City, Viet Nam.

Center service: Minh kha, Binh minh, Thanh Oai Dist, Ha Noi City.

Cell phone: 84 90 177 2222

E-mail: hatrino.ltd@gmail.com
