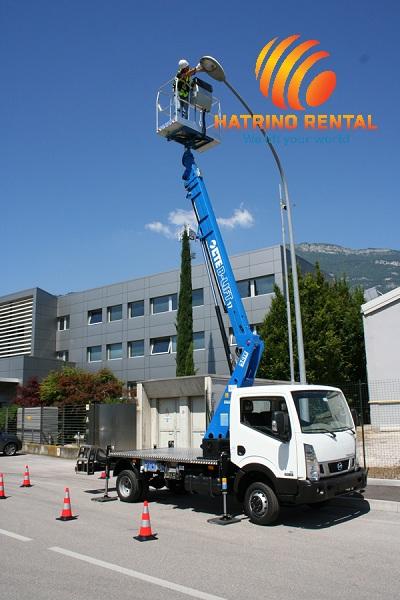

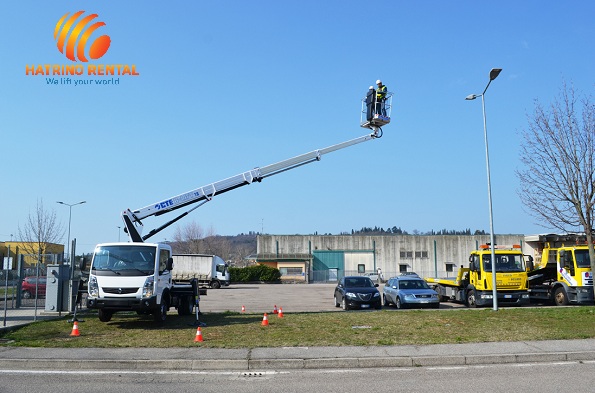

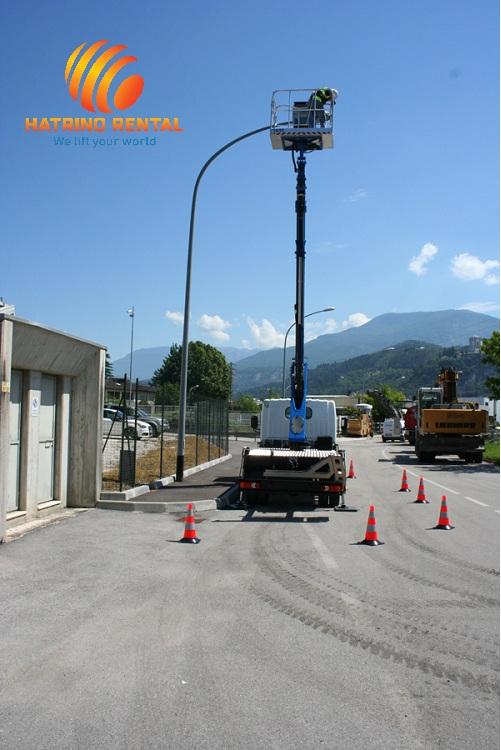

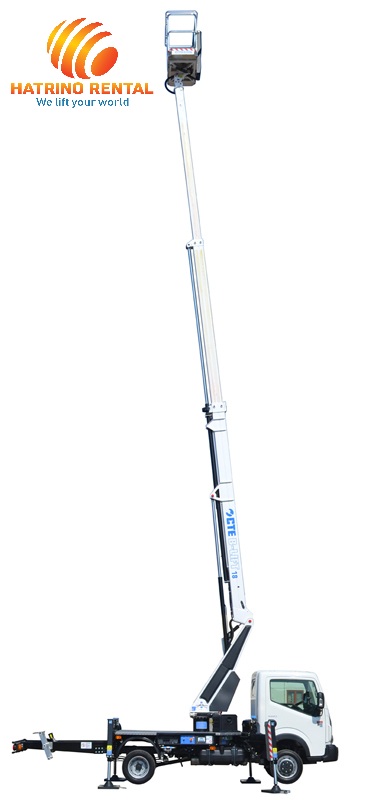

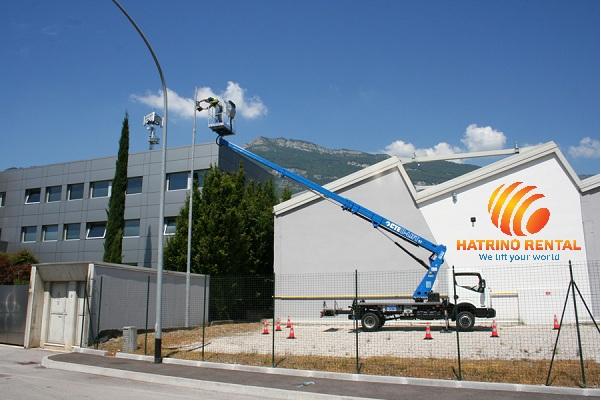

Main specification

Working height: 18 m

Platform height: 16m

Horizontal Reach: 12,5m

Loading capacity: 300kg

Manbasket dimension:1400x700x1100 mm

Power:  Engine

GVW Min: 3,5 ton

Overview.

• Telescopic boom (3 elements: main boom + 2 telescopic extension)
• 540° Turret rotation
• Smooth proportional controls with acceleration and deceleration ramps
• Engine start/stop control from the basket and the ground
• Automatic engine rpm management
• Anti-slip aluminum deck
• Aluminum basket 1400x700x1100 mm
• 65° + 65° hydraulic basket rotation
• Automatic basket levelling system
• 4 stabilisers with ground pressure sensors: front variable jacking outriggers and rear straight down stabilizers
• Variable jacking system with S3 Smart Stabilty System

• outreach and height max values and repeatability can change within ± 3% due to manufacturing variation and working condition.
