Main specification

Working height: 14.6m

Platform height: 12.6m

Horizontal Reach: 8,9m

Loading capacity: 200kg

Manbasket dimension:1400x700x1100 mm

Power:  Engine

GVW Min: 3,5 ton

OVERVIEW.

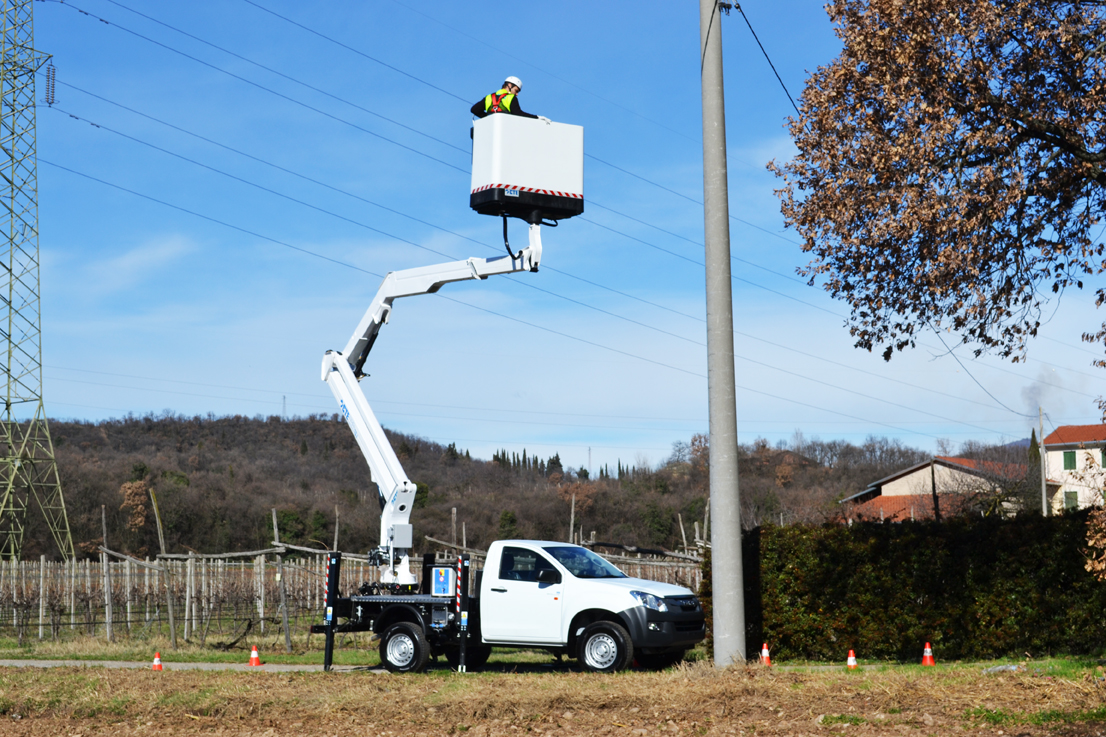

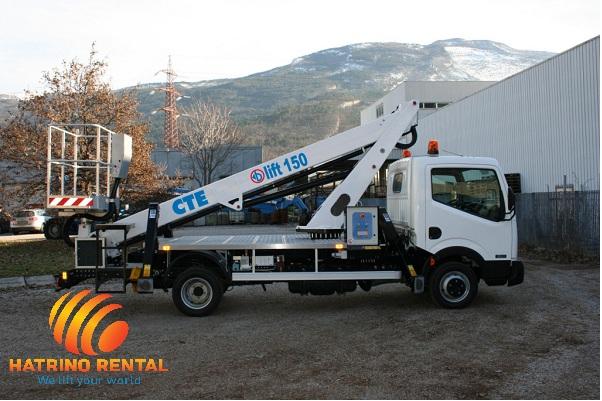

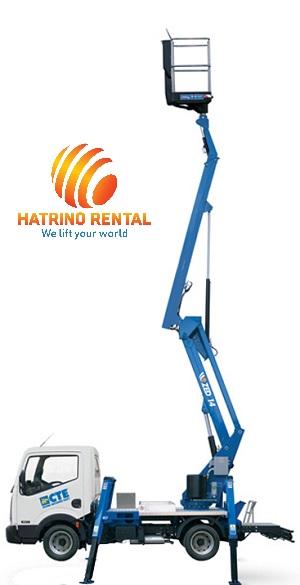

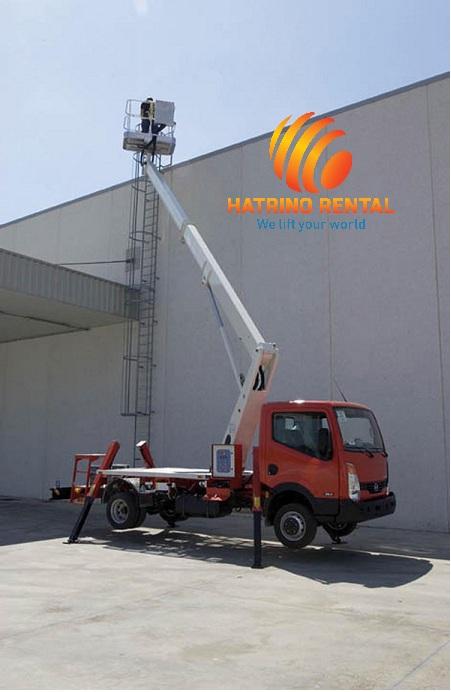

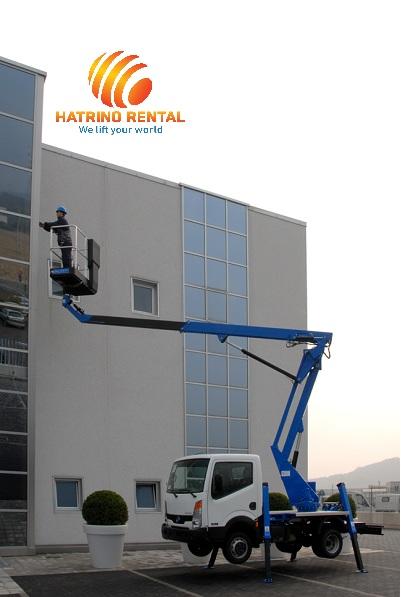

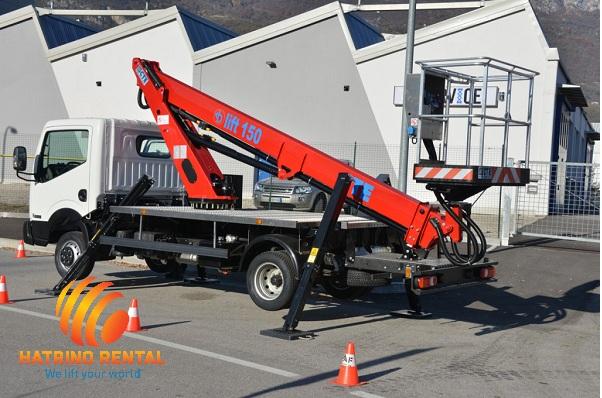

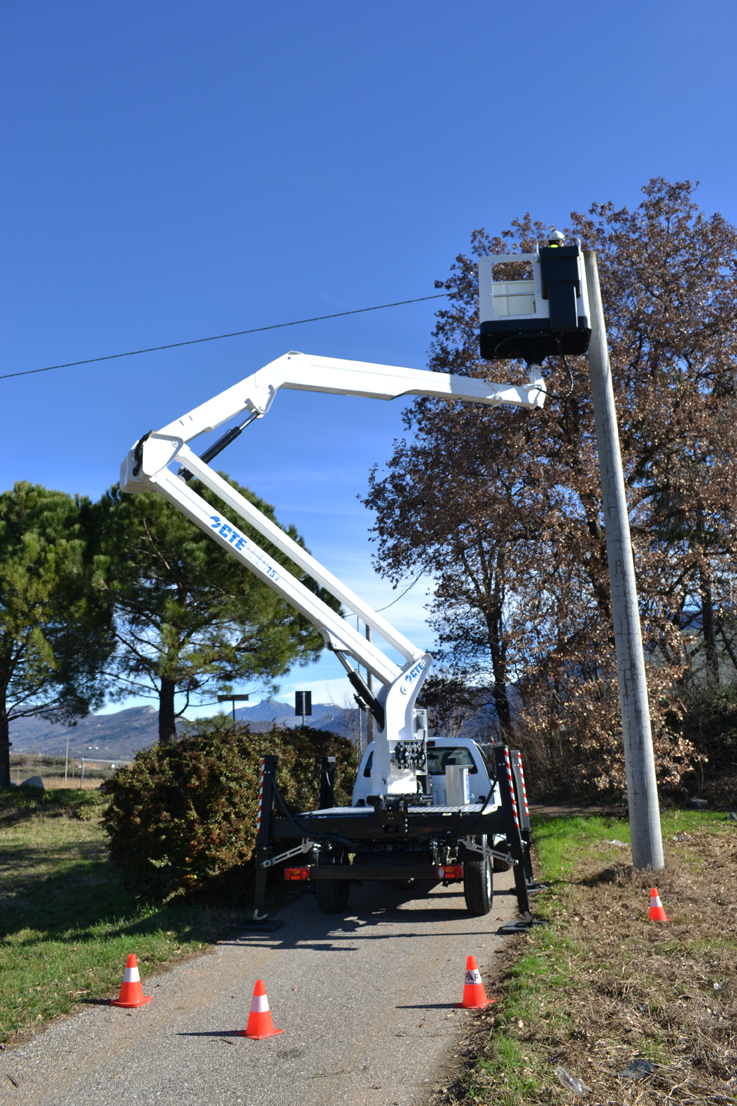

Lower arm with an articulated element + telescopic boom with one extension
• 360° continuous turret rotation
• Electrohydraulic proportional controls from ground and basket
• Engine start and stop from ground and basket
• Anti-slip aluminium flatbed deck
• Basket base in composite material and aluminum guardrails (1400x700x1100 mm)
and 230 kg capacity. Available VTR basket with 200 kg capacity
• Basket rotation 60° left + 60° right
• Automatic hydraulically actioned basket levelling
• 4 hydraulic outriggers with ground pressure sensors
• Load cell managed basket capacity
• Possibility to work on slopes up to 2,5%

* outreach and height max values and repeatability can change within ± 3% due to manufacturing variation and working condition.
