Main specification

Working height: 20 m

Platform height: 18m

Horizontal Reach: 8,8m

Loading capacity: 200kg

Manbasket dimension:1400x700x1100 mm

Power:  Engine

GVW Min: 3,5 ton

Overview.

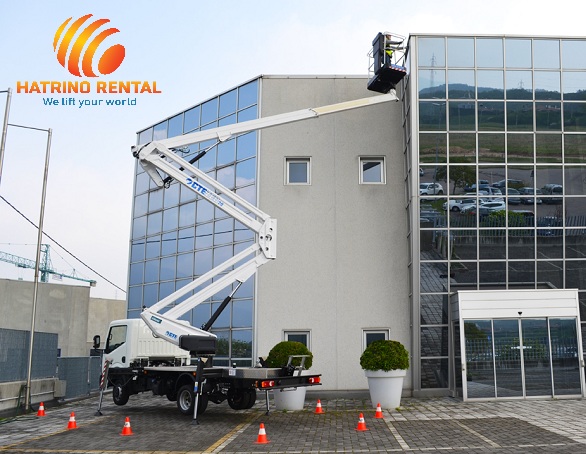

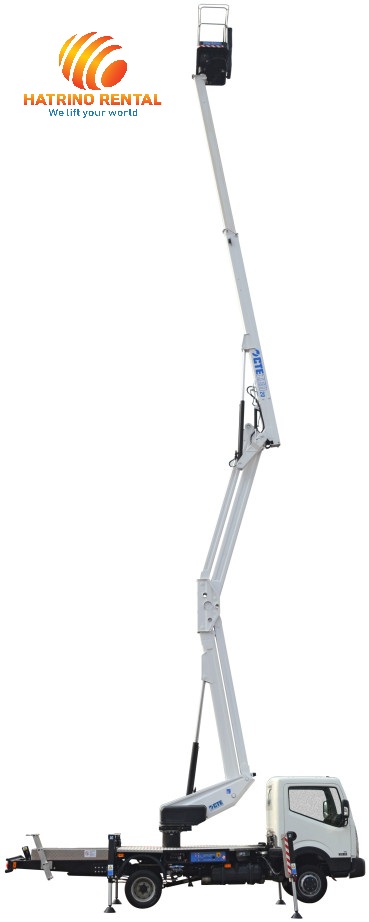

Double pantograph + telescopic boom with single extension
• Sigma boom movement enabled by connecting rods
• ±310° Turret rotation
• Proportional, electrohydraulic controls in basket and ground
• Smooth proportional controls with acceleration and deceleration ramps
• Engine start and stop controls from basket and ground
• Anti-slip aluminium flatbed decking
• Basket base in composite material with aluminium guardrails
• 60° + 60° hydraulic basket rotation
• Automatic hydraulically actioned basket levelling

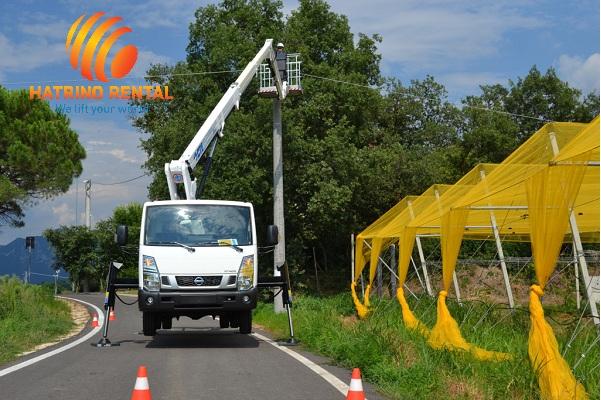

• 4 hydraulic outriggers with ground pressure sensors: front extendable jacking outriggers and rear straight down stabilizers

• outreach and height max values and repeatability can change within ± 3% due to manufacturing variation and working condition.
