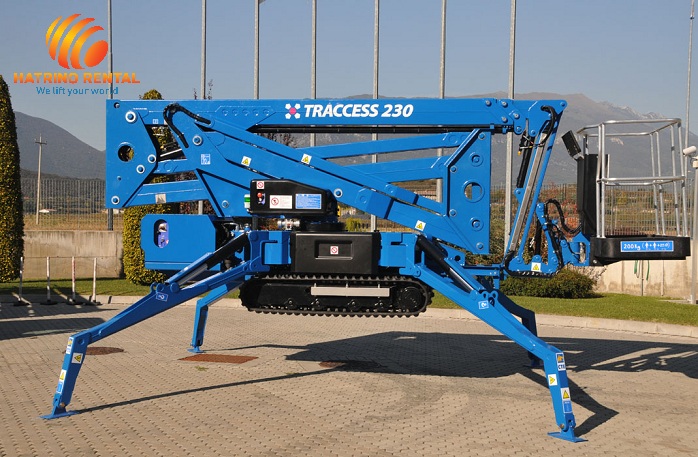

Main specification
Working height: 16,5 m
Platform height: 14,5 m
Horizontal Reach: 6,5m
Loading capacity: 200kg
Weight: 2,2 Ton
Power: Engine
Gradeability: 30%
Standard Features
- Produced according to EN 280 norm and the international safety regulations
- Hydraulic transmission
- Proportionals controls
- Piston engine Honda IGX440 with electronic control
- Jib (+68° - 83°)
- Aluminium basket for n.2 operators (capacity 200 Kg)
- Cage rotation (60°+60°)
- 320° turret rotation
- Horn and hourmeter
- Diagnostic system
- Electric tilt alarm device with automatic motion stop
- All-motion alarm
- No-loading cells, as it answers to the reinforced overloading request (EN280:2001)
- Black rubber tracks
- 230V electric line predisposition on the platform
- 230V monophasic electropump
Optionals
- Flashing warning light
- Gearcase protection cap
- 230V Supply with plug on the platform
- 230V Supply with plug on the platform with earth-leakage circuit breaker
- Supply of compressed air/water on platform
- Not-marking rubber tracks
